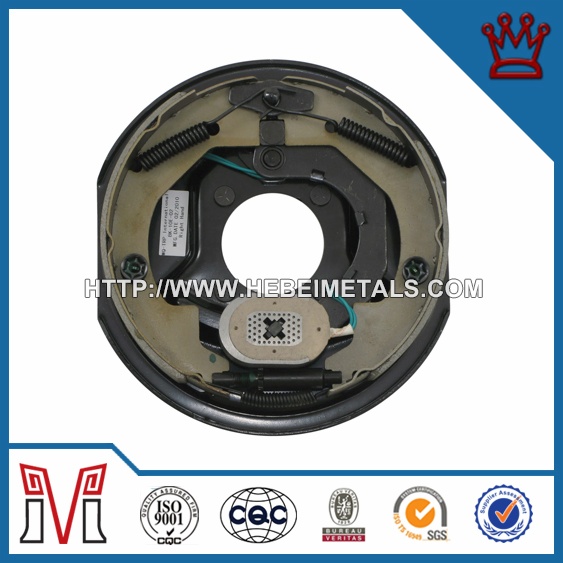

Electric Brake Assembly - 10 BK10E02

Item Code:BK10E02 Features:Passenger's-side electric trailer brake assembly measures 10" x 2-1/4" and features a thoroughly tested magnet and high-quality friction material. Rated for up to 3,500-lb axles.
  • Description



Trailer Brakes - BK10E02



Passenger's-side electric trailer brake assembly measures 10" x 2-1/4" and features a thoroughly tested magnet and high-quality friction material. Rated for up to 3,500-lb axles.



Features:

l  Electric brakes are easier to install and offer more user control than hydraulic brakes

l  Durable magnet is thoroughly tested for pull force and conductivity

l  SAE rated composite friction material lines brake shoes

l  Top and bottom edges of shoes are chamfered for smooth operation

l  Mounting bolts included

Specs:

l  Configuration: right hand

l  Dimensions: 10" diameter x 2-1/4" wide

l  Wheel size: 13", 14" and 15"

l  Mounting flange bolt pattern: 4 bolt

l  Axle rating: up to 3,500 lbs

l  Limited 1-year warranty

Other Products

Product Name:
Electric Brake Assembly - 12
Model:
BK12E01
Description:
Driver's-side electric trailer brake assembly measures 12" x 2" and features a thoroughly tested magnet and high-quality friction material. Rated for up to 7,000-lb axles.
Product Name:
Electric Brake Assembly - 10
Model:
BK10E01
Description:
Driver's-side electric trailer brake assembly measures 10" x 2-1/4" and features a thoroughly tested magnet and high-quality friction material. Rated for up to 3,500-lb axles.
